Best-in-Class Comfort

Our advanced air conditioning systems ensure consistent temperatures, whisper-quiet operation, and purified air - so every room feels just right.

Powerful Cooling

Beat the heat with advanced compressor technology and turbo cooling modes that deliver instant temperature drops across any room.

Instant Relief from tropical heat

Our advanced AC systems handle tropical climates with rapid, efficient cooling and intelligent airflow, delivering instant comfort and lasting freshness.

Product Features

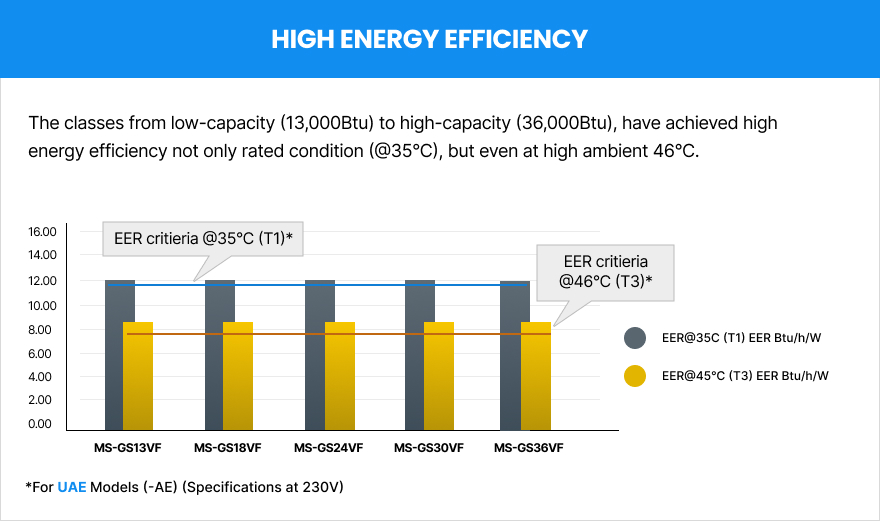

High Energy Efficiency Chart

The classes from low-capacity (13,000Btu) to high-capacity (36,000Btu), have achieved high energy efficiency not only rated condition (@35°C), but even at high ambient 46°C.

*For UAE Models (-AE)(Specifications at 230V)

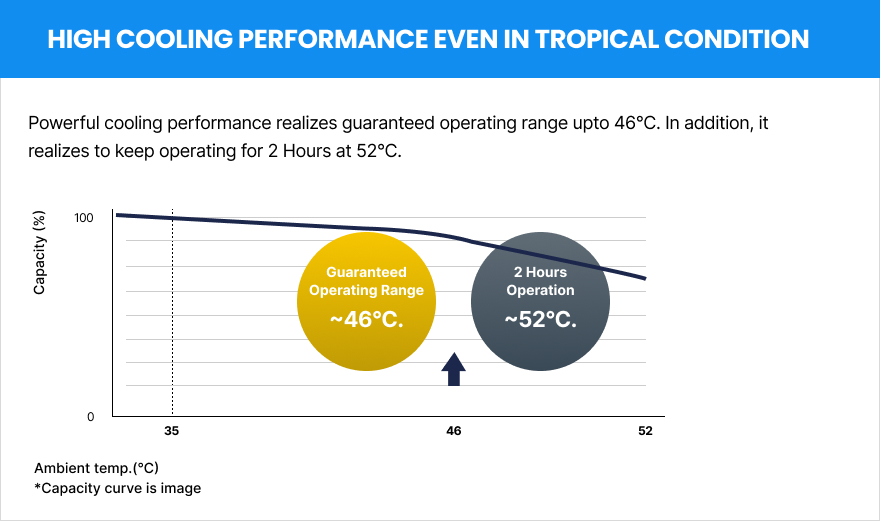

HIGH COOLING PERFORMANCE EVEN IN TROPICAL CONDITION

Powerful cooling performance realizes guaranteed operating range upto 46°C. In addition, it realizes to keep operating for 2 Hours at 52°C.

Ambient temp.(°C)
*Capacity curve is image

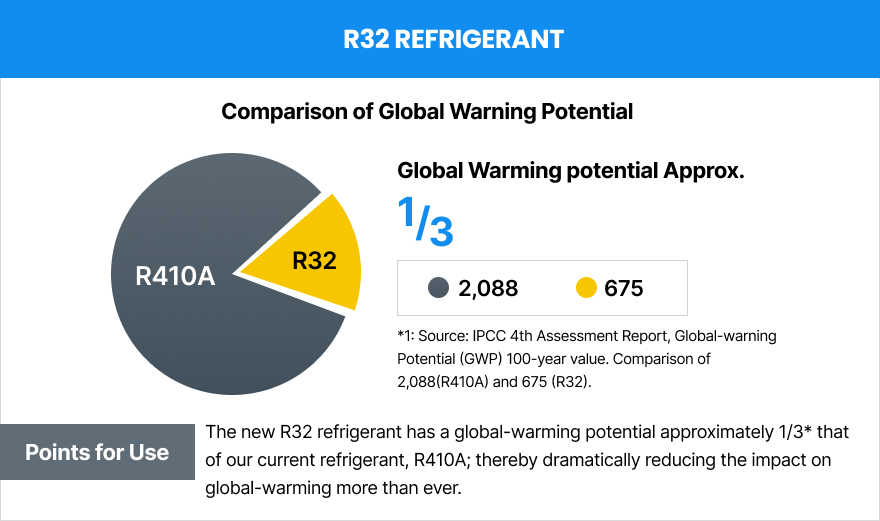

R32 REFRIGERANT

Comparison of Global Warning Potential

Global Warming potential Approx.

1/3
2,088
675

*1: Source: IPCC 4th Assessment Report, Global-warming Potential (GWP) 100-year value. Comparison of
2,088 (R410A) and 675 (R32).

Point To Use

The new R32 refrigerant has a global-warming potential approximately 1/3* that of our current refrigerant, R410A; thereby dramatically reducing the impact on global-warming more than ever.

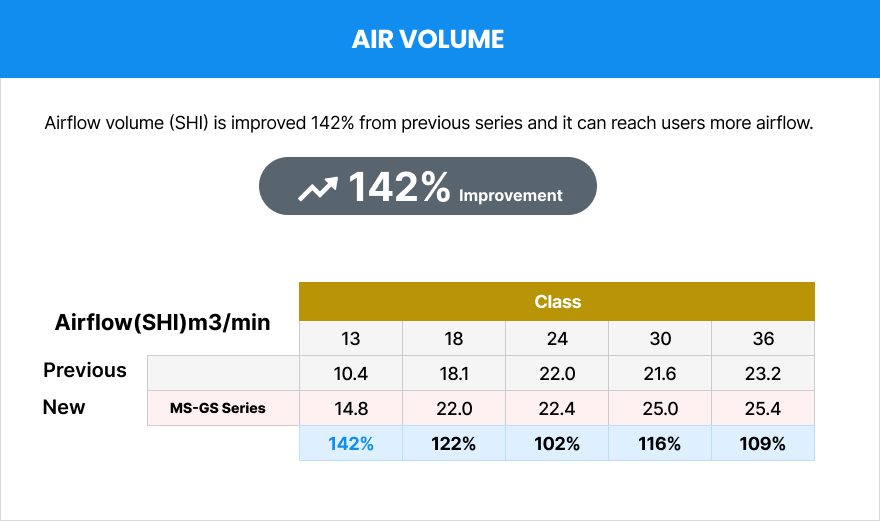

AIR VOLUME

Airflow volume (SHI) is improved 142% from previous series and it can reach users more airflow.

142% Improvement
Airflow (SHI) m³/min Class
13 18 24 30 36
Previous 10.4 18.1 22.0 21.6 23.2
New
MS-GS Series		 14.8 22.0 22.4 25.0 25.4
142% 122% 102% 116% 109%

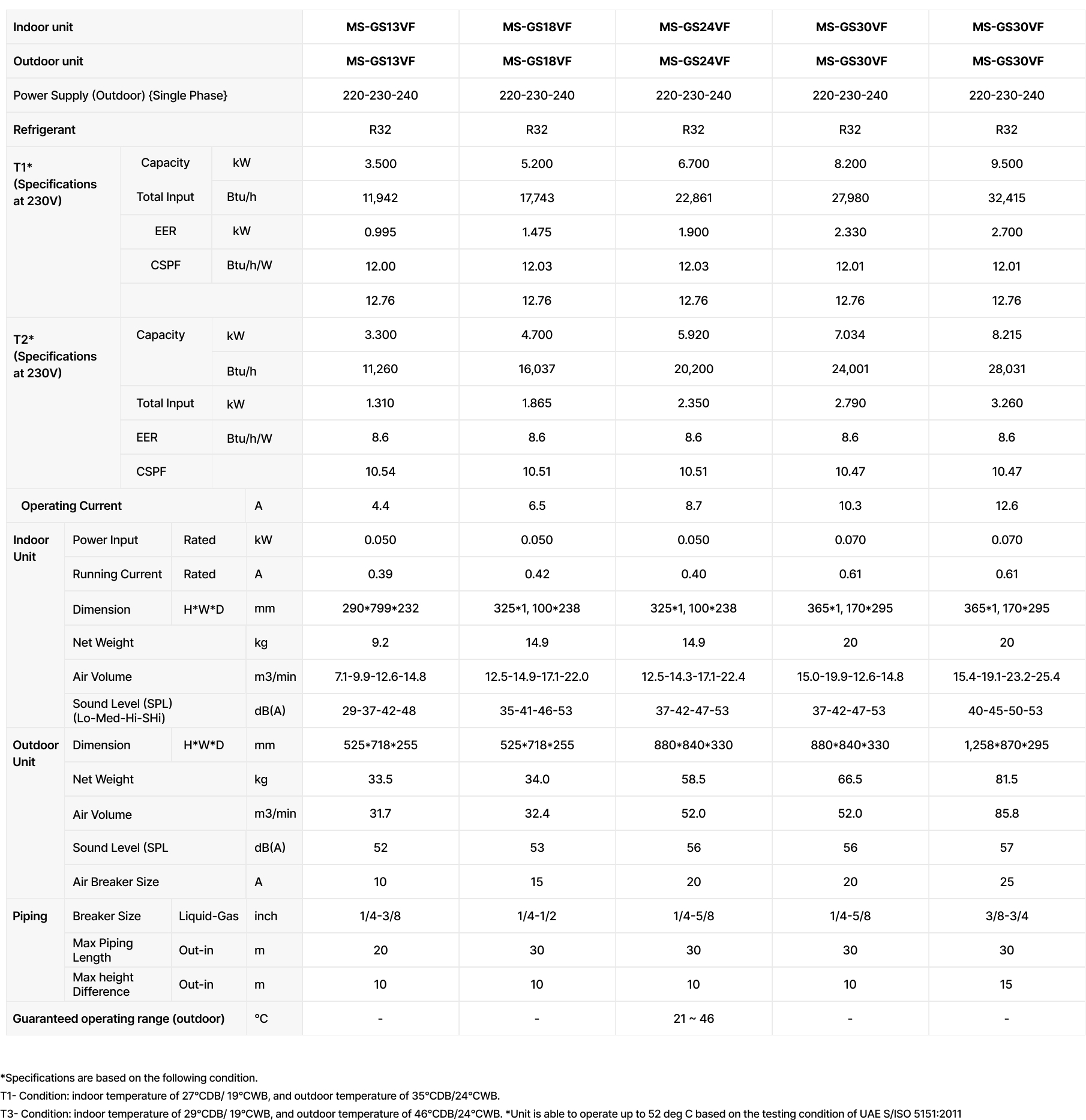

Specifications
